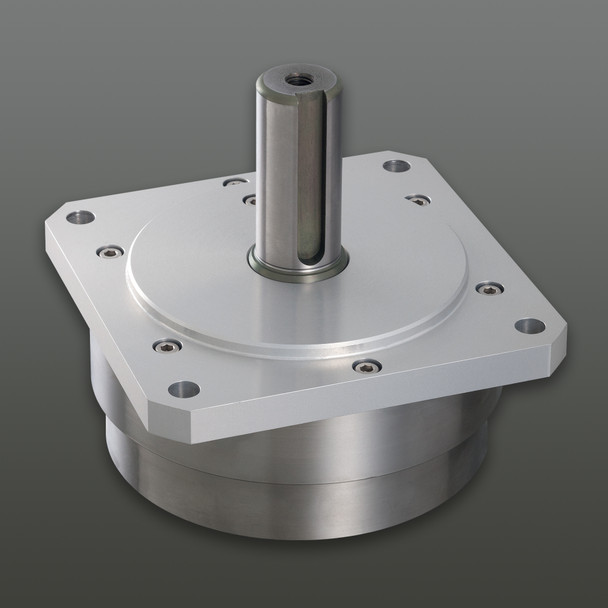

FRT-W1-185, Torque: 180±40Nm, Weight: 6kg, Damping direction: Both
$3,457.80
Frequently bought together:
Description
FRT-W1-185
Bansbach easylift provides the most comprehensive line of products with an infinite number of off the shelf component combinations.
- Main Body length: 150mm
- Main Body width: 150mm
- Main Body height: 72mm
- Mounting plate width: 150mm
- Mounting plate length: 150mm
- Rotating shaft length: 68mm
- Rotating shaft diameter: 30mm
- Torque: 180± 40Nm
- Damping direction: Both
- Max rotation speed: 50 RPM
- Max cycle rate: 1.5 cycles/min
- Operating temperature: -20 ~ 60°C
- Weight: 6kg
- Main body material: SUS304
- Cap material: A2017
- Rotating shaft material: SUS420
- Oil type: Silicone oil
