FYN-D3-R104, Max torque: 10Nm, Damping direction: Clockwise, Weight: 215g, Reverse torque: 2Nm
$37.85
Frequently bought together:
Description

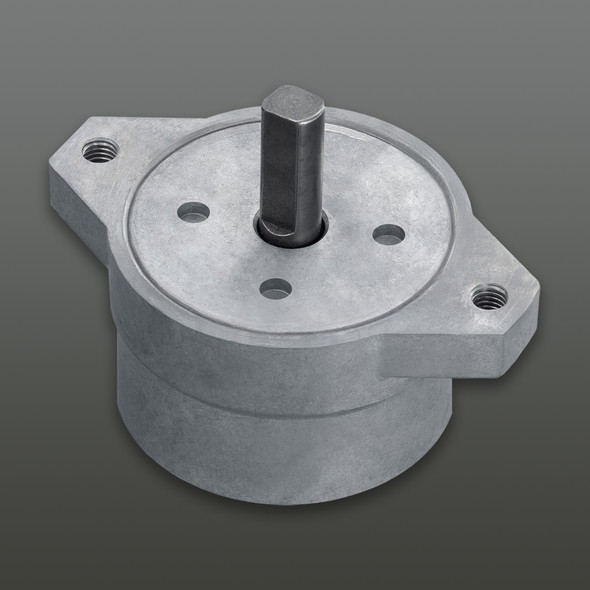

FYN-D3-R104
Bansbach easylift provides the most comprehensive line of products with an infinite number of off the shelf component combinations.
- Overall length: 50mm
- Housing length: 16mm
- Housing diameter: 44.5mm
- Rotating shaft length: 20mm
- Rotating shaft diameter: 8mm
- Mounting plate width: 66mm
- Mounting hole pitch: 56mm
- Max torque: 10Nm
- Reverse torque: 2Nm
- Damping direction: Clockwise
- Max angle: 180°
- Operating temp: -5 - 50°C
- Weight: 215g
