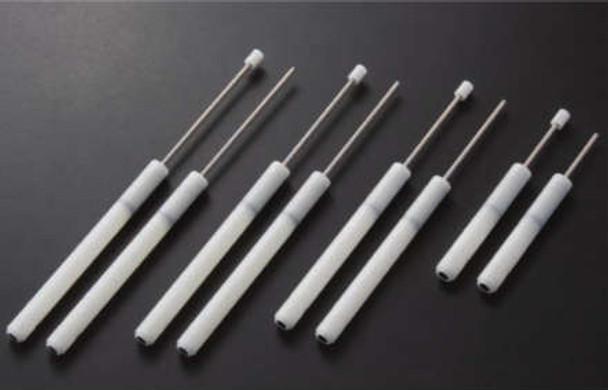

FPD-1030B2-SW, Extension Force: 1.5N, Cylinder Length: 68.1mm, Rod Length: 35mm, Stroke: 30mm

$9.87
Frequently bought together:

Description

FPD-1030B2-SW
Bansbach easylift provides the most comprehensive line of products with an infinite number of off the shelf component combinations.

  • Load Handling: 10kg
  • Thrust: 8kg
  • Extension Force: 1.5N
  • Impact Rate: 0.3m/sec
  • Motion Time: 0.2 - 1.5 sec
  • Cylinder color: White
  • Cylinder Diameter: 10mm
  • Rod Diameter: 2.5mm
  • Cylinder Length: 68.1mm
  • Rod Length: 35mm
  • Stroke: 30mm
  • Rod End recess for retaining ring: 2mm diameter x 0.5mm thick
  • Overall Length: 103.1mm
  • With Return Spring: No
  • With Cap: No
